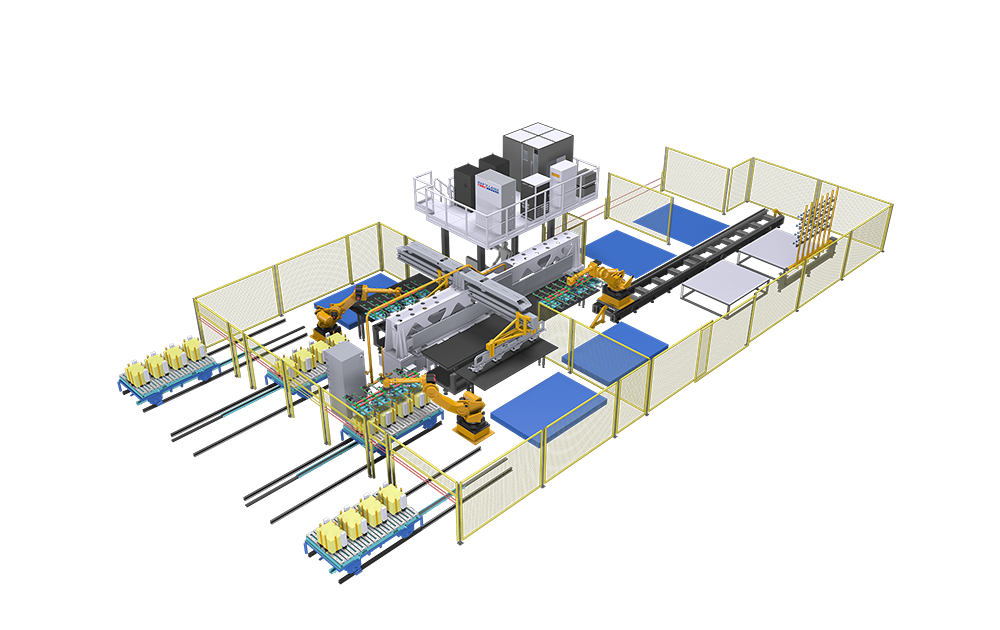

It is mainly composed of laser, welding head, Hans control system, double loading trolley robot, preset position workbench, double material detection device, centering mechanisms, shuttle mechanism, plate pressing mechanism, weld joint tracking and testing and so on.
It is fully automated laser tailor-welding line, mainly used for auto unequal plate welding, Personnel only need timing refueling, and the loading and unloading do not affect the production of equipment. The equipment can also be switched to manual feeding or manual feeding mode.
Automatic loading and unloading, welding head fixed, plate shuttle type movement, up and down fixed point air pumping, can switch to manual.
Strong applicability, meet the welding of a variety of formats and groups of materials, combination of high and low skip cars (or side-by-side structure).
Equipped with CCD vision positioning system, fast and high precision searching weld joint and automatic welding.
Equipped with two material preparation cars, ensure the production of material preparation without shutdown.
Centering mechanisms equipped with the upper and lower border wrong side guard mechanism, effectively avoid the occurrence of positive and negative mismatch.
Automatic online detection, multi-group material welding, according to the weld joint quality inspection system, the program automatically stacks the good and defective products.
| No. | Name | NameParameter |
|---|---|---|
| 1 | Weld joint length | 100-2500mm |
| 2 | Maximum plate length (welding direction), LH on the left | 2500mm |
| 3 | Maximum plate length (welding direction), RH on the right | 2500mm |
| 4 | LH Material width, LH on the left | 100-1200mm |
| 5 | Material width, RH on the right | 100-1200mm |
| 6 | Single material thickness | 0.5-3.0mm |
| 7 | Number of weldable workpieces per cycle | 1-4 |
| 8 | Distance between materials (multiple materials per cycle) | 100mm |
