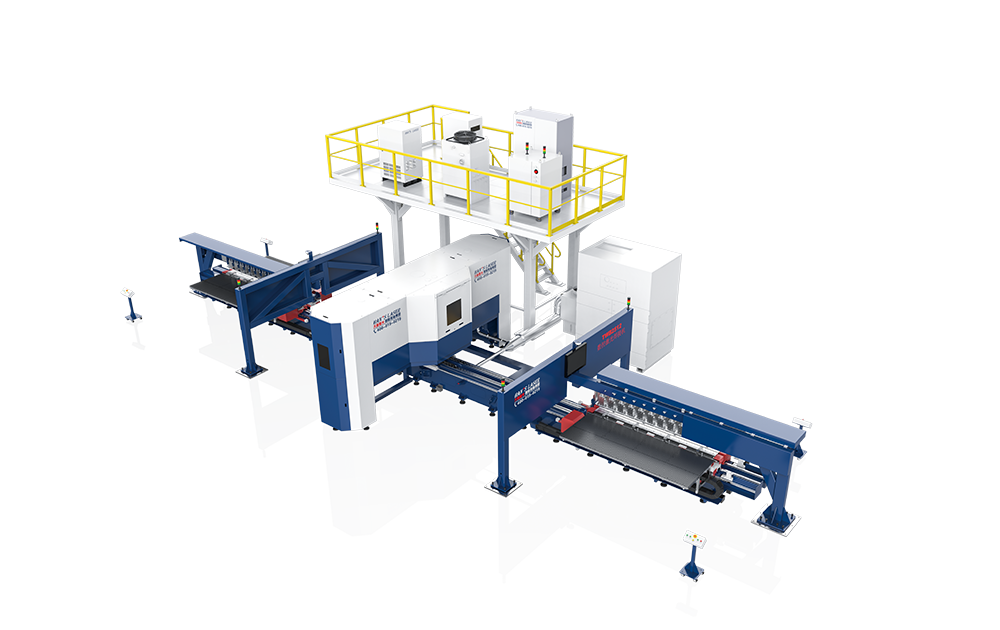

It is mainly composed of welding head, laser, control system, loading and unloading workbench, shuttle mechanism, plate pressing mechanism, weld joint tracking and testing and so on.
It is mainly used for auto unequal plate welding, able to weld various linear weld joints economically and efficiently, and can weld one or more pieces of the same or different thickness of the tailor-welded plate.
Manual loading and unloading, fixed welding head, plate shuttle type movement, up and down fixed point air pumping.
Equipped with CCD vision positioning system, fast and high precision searching weld joint and automatic welding.
Standard models, fast delivery time, low investment, cost-effective king, delivery time guarantee and low one-time investment.
Double station, equipped with two sets of electromagnet shuttle station, maximize the laser output rate.
Can be installed robot according to the needs, to be fully automatic loading and unloading.
| No. | Machine tool | NameParameter |
|---|---|---|
| 1 | Shuttle station X1 X2 axis route | ≥5600mm |
| 2 | Y and Y1 axis route | ≥20mm |
| 3 | Z axis route | ≥100mm |
4 | X axis position accuracy | ±0.05mm |
| 5 | X axis repeat position accuracy | ±0.05mm |
| 6 | X axis maximum walking speed | 30m/min |
| 7 | Y and Y1 axis position accuracy | ±0.02mm |
| 8 | Y and Y1 axis repeat position accuracy | ±0.01mm |
| 9 | Z axis position accuracy | ±0.03mm |
| 10 | Z axis repeat position accuracy | ±0.02mm |
| 11 | Control system | HAN’S 701 |
| 12 | Machine tool protection grade | IP45 |
| 13 | Power protection grade | IP54 |
